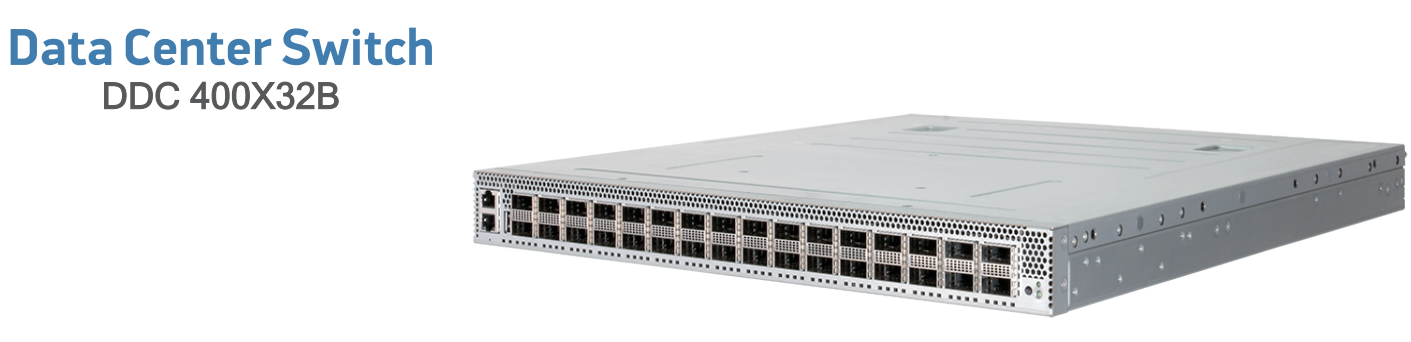

The Soul Ra DDC400X32B switch is a programmable leaf or spine switch for large scale data centers. In a 1RU form factor, the switch provides line-rate L2 switching and L3 routing, deep packet inspection, and traffic load balancing etc, across the 32 x QSFP-DD ports that support up to 32 x 400 GbE connections . The DDC400X32B can be deployed as a leaf switch supporting 25 /50 /100 GbE to servers, routers etc. with 100 /400 GbE uplinks, or as a spine switch supporting 100/400 GbE leaf and spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE ), which supports the installation of compatible Network Operating System software, including the open source option and commercial NOS offerings.
Key Features and Benefits
■ Very high performance, open network switch infrastructure for data center fabric
■ Designed with programmable Tofino2 switch silicon from Intel Networks
■ Deploys as leaf or spine switch supporting 25/50/100 GbE to servers, with 100 or 400 GbE uplinks
■ Deploys as spine switch supporting 100 or 400 GbE leaf and spine interconnects
■ 32 x QSFP-DD switch ports, each supporting 1 x 400 GbE, or via breakout cables 4 x 100 GbE, 8 x 50 GbE or 16 x 25 GbE or 40 GbE or 10 GbE
■ Layer 2 or Layer 3 forwarding of 12.8 Tbps (25.6Tbps full duplex)
■ Supports port-to-power airflow direction
■ All ports on front; PSUs and fans accessible from rear
■ Hot-swappable, load-sharing, redundant AC power
■ 5+1 redundant, hot-swappable fan modules
■ Switch pre-loaded with diagnostics and Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
■ Quad programmable packet processing pipelines with 20 Match Action Unit stages per pipe
Free Software Included

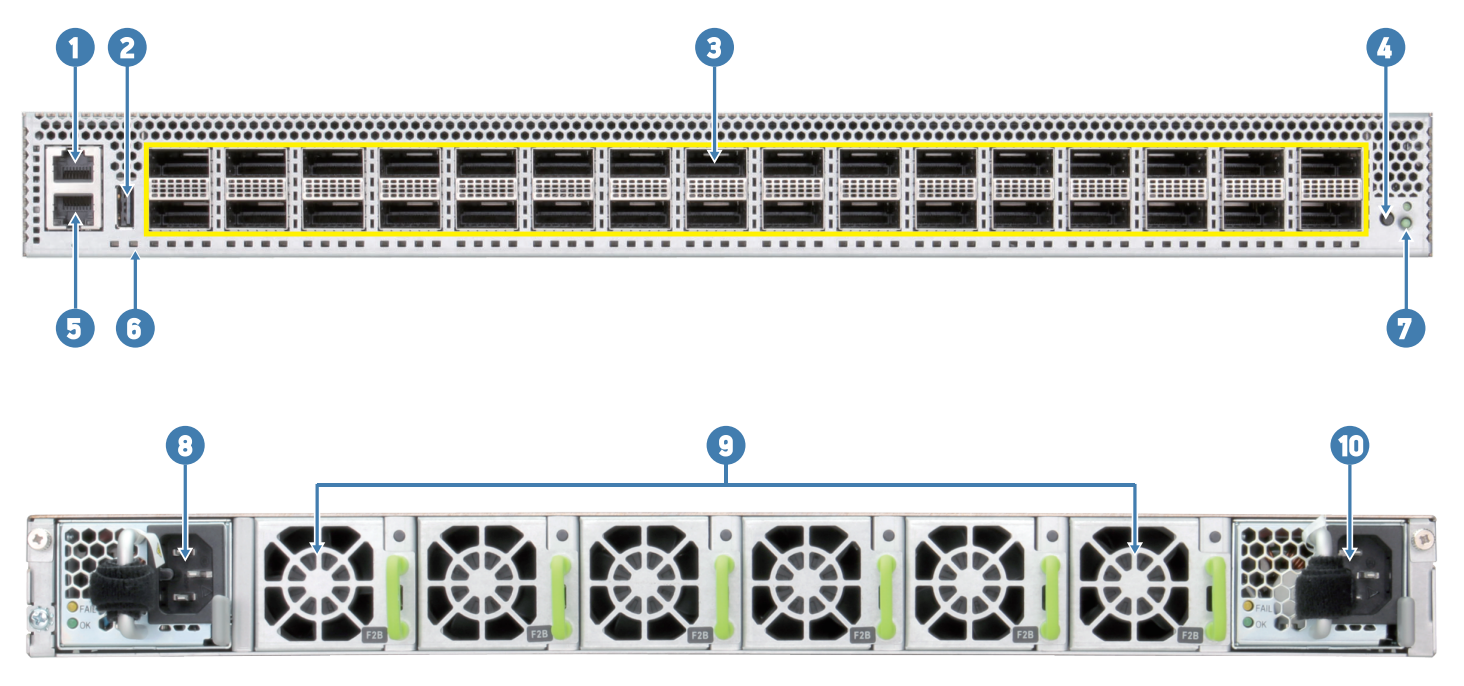

Interfaces
| Description | |
| 1. Console port | 6. System LEDs |
| 2. USB storage port | 7. Breakout mode LEDs |
| 3. 32 x 400G QSFP-DD ports | 8. PSU 2 |
| 4. Port LEDs breakout mode button | 9. Hot-swappable 5 + 1 redundant fans |
| 5. Management port | 10. PSU 1 |
Ports
■ Switch Ports:
32 x QSFP-DD ports. Each port supports 1 x 400 GbE or 4 x 100 GbE or 8 x 50 GbE or 16 x 25 GbE per port using breakout cables
■ Management ports on port side:
1 x RJ-45 serial console
1 x RJ-45 1G BASE-T management
1 x USB Type A storage
Baseboard Management Controller (BMC) Aspeed AST1250A1-GP
Key Components
■ Switch Silicon: Intel Tofino2 BFN-T20-128Q (U series)
■ CPU Modules:
Intel Pentium D-1517 (4 core@1.6GHz)
8GB SO-DIMM 128GB M.2 SSD
Performance
■ Switching Capacity: 12.8 Tbps (25.6 Tbps full duplex)
■ Jumbo frames support up to 9216 Bytes
■ Packet Buffer Size: 64 MB integrated packet buffer
Physical and Environmental
■ Dimensions (WxDxH): 440 x 507 x 44 mm (17.32 x 19.97 x 1.73 inch)
■ Weight: 10.005 kg (20.05 lb)
■ Fans: 5+1 hot-swappable redundant fans
■ Operating Temperature: 0°C to 40°C (32°F to 104°F)
■ Storage Temperature: -40°C to 70°C (-40°F to 158°F)
■ Operating Humidity: 0% to 95% noncondensing
■ Operating Altitude: 0 to 10,000 feet
Software
■ Switch is loaded with Open Network Install Environment (ONIE) software installer
LEDs
■ QSFP-DD Port LEDs: Link Status, Activity, Rate
■ Ethernet Management Port LED: Link Status, Activity
■ System LEDs: Diagnostic, Locator, PSU and Fan Status
Power
■ PSUs: 2 redundant, load-sharing, hot-swappable AC
■ Input Voltage: 90 to 240 VAC at 50-60 Hz
Regulatory Compliance
■ EMI
FCC
FCC 47 CFR Part 15 Subpart B Class A
CE
EN55022 Class A
EN55035
EN300 286,
EN 61000-3-2,
EN 61000-3-3
VCCI
VCCI-32
BSMI ■
Safety UL
/ CUL
UL, CSA
CB
IEC: EN-60950-1 & IEC 62368 ■
RoHS
Restriction of Hazardous Substances (RoHS) 6/6
China Restriction of Hazardous Substances (RoHS) ■
Environmental:
Temperature: IEC 68-2-14
Vibration: IEC 68-2-36,
IEC 68-2-6 Shock:
IEC 68-2-29 Drop: ISTA 2A
Acoustic Level: TBD
Warranty
Please check www.soulra.net for the warranty terms in your country.
For More Information
To find out more about Soul Ra, LLC products and solutions, visit www.soulra.net
About Soul Ra, LLC
Soul Ra, LLC is in the business of providing innovative network solutions. In the service provider network, in the data center or in the cloud, Soul Ra, LLC delivers the soſtware and systems that transform the way the world connects. Soul Ra, LLC serves customers and partners worldwide. Additional information can be found at www.soulra.net
To purchase Soul Ra, LLC products or services, please contact your Soul Ra, LLC representatives at Support@soulra.net
© Copyright 2022 Soul Ra, LLC. The information contained herein is subject to change without notice. This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment, equipment feature, or service offered by Soul Ra, LLC. Soul Ra, LLC shall not be liable for technical or editorial errors or omissions contained herein.
Ordering Information
Base model: AS9516-32D; Intel® Pentium® D-1517; 32-Port 400G QSFP-DD; ONIE soſtware installer.
| Model Number | Part Number | PSU | Airflow | Region (power cord) |
| AS9516-32D-O-AC-F-US | FP5ZZ8632404A | Dual AC PSUs | Port-to-Power airflow | N. America |
| AS9516-32D-O-AC-F-EU | FP5ZZ8632204A | Dual AC PSUs | Port-to-Power airflow | EU |
| AS9516-32D-O-AC-F-UK | FP5ZZ8632304A | Dual AC PSUs | Port-to-Power airflow | UK |
| AS9516-32D-O-AC-F-JP | FP5ZZ8632504A | Dual AC PSUs | Port-to-Power airflow | Japan |
